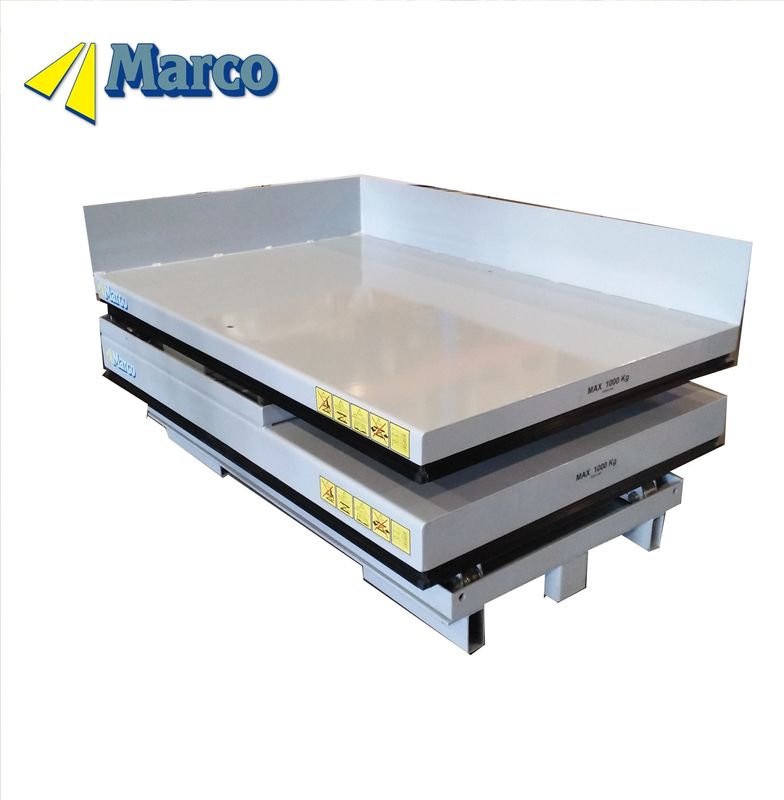

1000kg Hydraulic Tilt Scissor Lift Table Designed for Workshop Crane M2-010090-D2 MT
Product Details:
| Certification: | CE, ISO 9001 |
|
Detail Information |
|||
| Model NO.: | M2-010090-D2+MT | Product Name: | Marco Hydraulic Tilt Scissor Lift Table |
|---|---|---|---|
| Capacity: | 1000kg | Lift Stroke: | 900mm |
| Close Height: | 410mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request | ||
Product Description
Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table
Product Description
Marco Material Handling Customsized 1000Kg Hydraulic Tilt Scissor Lift Table
| SPECIFICATION | |||
| Capacity (Kg): | 1000 | Rated current (A): | 2,4 |
| Stroke (mm): | 900 | Control voltage (V): | 24 AC |
| Closed height (mm): | 410 | Power pack location: | INT |
| Platform length (mm): | 1500 | Protection class: | IP55 |
| Platform width (mm): | 1000 | Hydraulic oil: | K2 |
| Lifting time (s): | 20 | Surface treatment: | ISO 32 |
| Output (kW): | 0.75 | Colour: | RAL7040 |
| Power supply (V): | 3x400 AC | Lift category: | 3 |
| Frequency (Hz): | 50 | Declaration: | IIA |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
