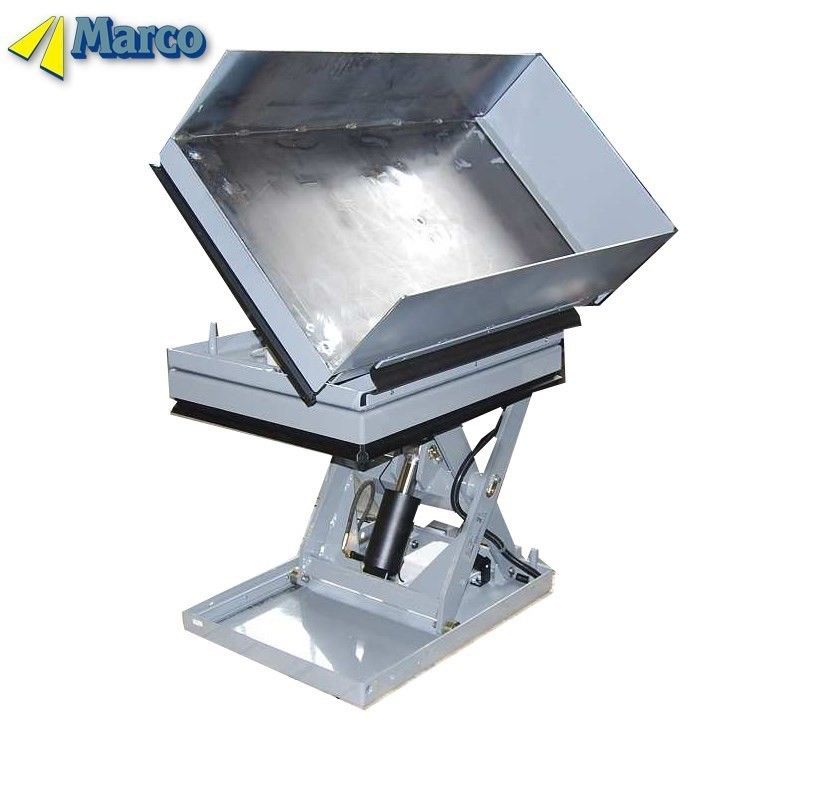

Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table for Smooth Stationary Lifting
Product Details:
| Certification: | CE, ISO 9001 |
|
Detail Information |
|||
| Model NO.: | M0-002050-D1+ MT 002045-D1 | Product Name: | Marco Ergonomic Hydraulic Tilt Scissor Goods Lift |
|---|---|---|---|
| Capacity: | 200kg | Lift Stroke: | 500mm |
| Close Height: | 360mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request | ||
Product Description
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table
Product Description
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table
| Mechanical data | |
| Capacity | 200 Kg |
| Lift stroke | 500 mm |
| Lifting time | 8 s |
| Closed height | 360 mm |
| Weight | 310 Kg |
？Ergonomic compact lift table fitted with a tilt unit (45°) for optimal operator working height and is used in an assembly line.
？Roll off protection around the table is fixed at both long sides and removable at the short sides.
？The table and the tilt runs with a double hand control panel for high security.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
