20000kg Capacity Warehouse Crane Industrial Hydraulic Scissor Lift for Truck Assembly Lin
Product Details:
| Certification: | CE, ISO 9001 |
|
Detail Information |
|||
| Model NO.: | M5-200060-D4/2L | Product Name: | Industrial Hydraulic Scissor Lift Working Platform |
|---|---|---|---|
| Capacity: | 20000kg | Lift Stroke: | 600mm |
| Close Height: | 670mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request | ||
Product Description

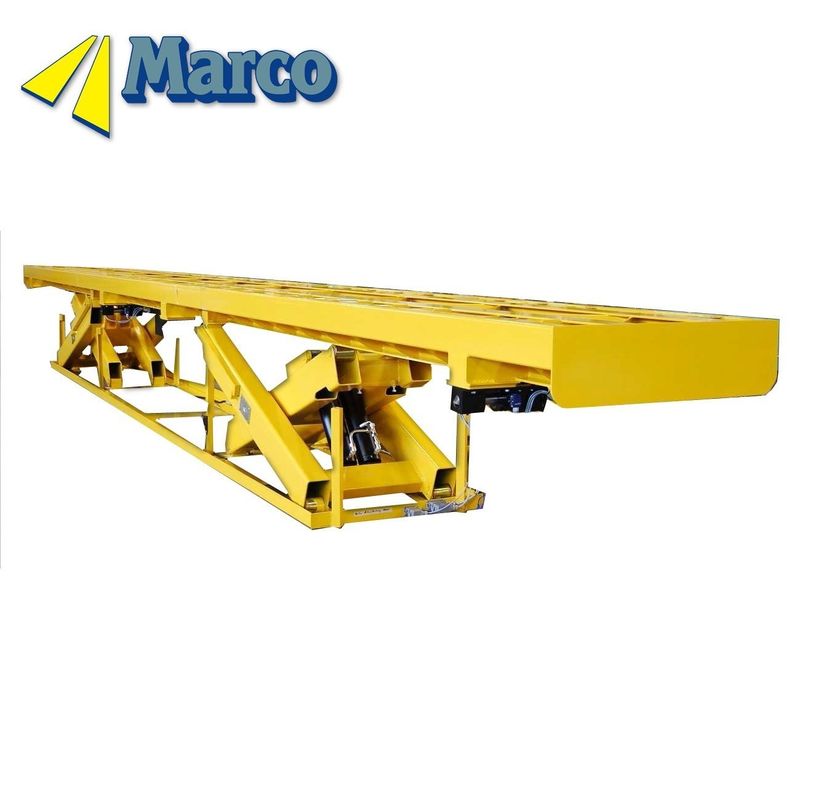

Industrial Hydraulic Scissor Lift Working Platform for Truck Assembly Line
Product Description
Industrial Hydraulic Scissor Lift Working Platform for Truck Assembly Line
| Mechanical data | |
| Capacity | 20000 Kg |
| Lift stroke | 600 mm |
| Lifting time | 19 s |
| Closed height | 670 mm |
| Weight | 4090 Kg |
？ The table is secured in upper position with 8 hydraulic shot bolts.
Other
？ Those tables will be equipped with a chain conveyer and are placed at the end of the assembly line for Volvo trucks.
？ The ready truck comes out on a dolly on the table. The table then lowers and releases the truck on its wheels.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
