Hydraulic Scissor Lift for Theatres Performances Stationary Stage 5-030112-D4/2L
Product Details:
| Certification: | CE, ISO 9001 |
|
Detail Information |
|||
| Model NO.: | M7-030543-D2 + M3, 5-030112-D4/2L | Product Name: | Stationary Stage Hydraulic Scissor Lift Platform |
|---|---|---|---|
| Capacity: | 3000kg | Lift Stroke: | 6550mm |
| Close Height: | 1700mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request | ||
Product Description

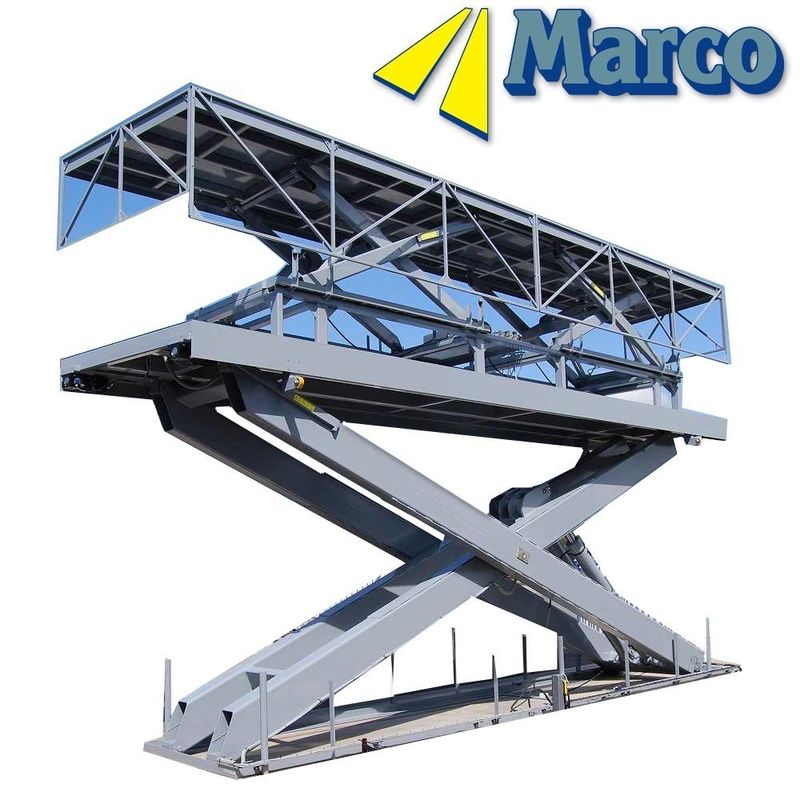

Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances
Product Description
Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances
| Mechanical data | |
| Capacity | 3000 kg |
| Platform size | 9490 / 8895 x 1955 mm |
| Frame size | 8300 x 1560 mm |
| Lift stroke | 6550 mm (5430 / 1120) |
| Lifting time | 151 s (122 / 29) |
| Closed height | 1700 mm (850 / 340 + 510) |
| Weight | 11110 kg (7920 + 3190) |
？ The stage table is used during theatres,concerts and other scene performances.
？ The M7-lift table will be located in a shaft and is provided with 4 hydraulic shot bolts, 4 guide rollers and intermediate switches for stops at 3 levels below floor level (highest
level of M7-table), where stage equipment is stored.
？ The reason with a M3,5-lift table above the M7-table is to raise the last 1120 mm from floor level to stage level, where no possibility was to lock the table with shot bolts.
？ The upper platform has pipe steel framework on 3 sides for wooden panel attachment.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
