Hydraulic Scissor Lift Mechanism Marco Circular 4 Stage Platform for Scene Performances
Product Details:
| Certification: | CE, ISO 9001 |
|
Detail Information |
|||
| Model NO.: | M2-020090-D8/2L | Product Name: | Marco Circular 4 Scissor Lift Table Stage Platform |
|---|---|---|---|
| Capacity: | 2000kg | Lift Stroke: | 900mm |
| Close Height: | 245mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request | ||
Product Description

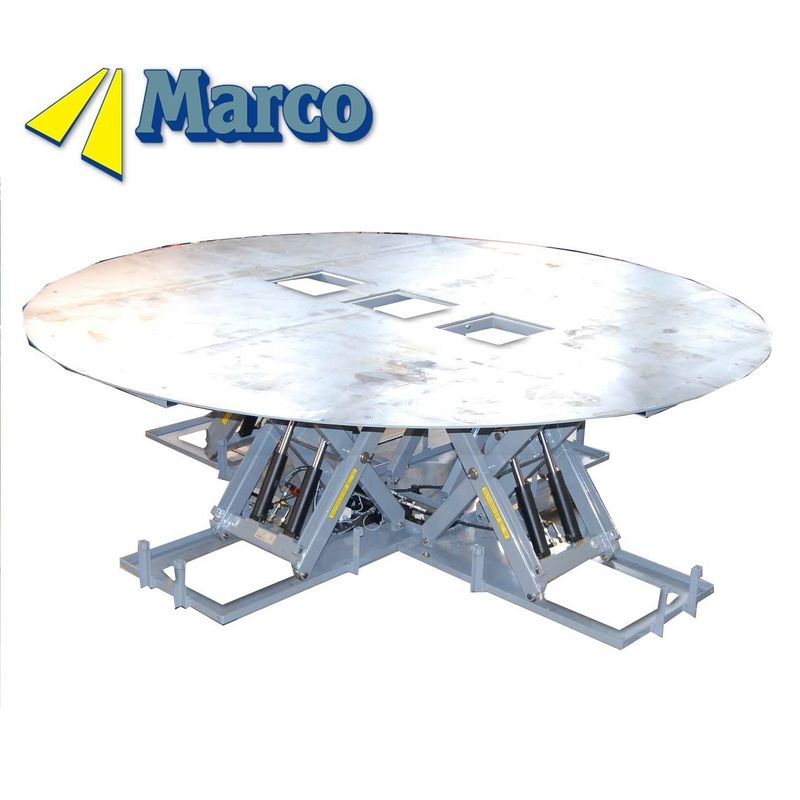

Marco Circular 4 Scissor Lift Table Stage Platform for Scene Performances
Product Description
Marco Circular 4 Scissor Lift Table Stage Platform for Scene Performances
| Mechanical data | |
| Capacity | 2000 kg |
| Frame size | 1350 x 790 mm (x4) |
| Lift stroke | 900 mm |
| Lifting time | 39s |
| Closed height | 245 mm |
| Weight | 1680 kg |
Wooden floor will be placed on the circular platform so the table can be used as a dance floor.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
